Online Water Dissolved Oxygen Sensor Ip68 Modbus Protocol Fluorescent Material

Product Categories
Xi'an Desun Uniwill Electronic Technology Co., Ltd.
Contact Now

Online Water Dissolved Oxygen Sensor Ip68 Modbus Protocol Fluorescent Material

  • 1
  • 2
  • 3

Brand Name : Desun Uniwill

Model Number : DS-380

Place of Origin : China

MOQ : 0~100 pcs

Price : $280.00 - $400.00/ Piece

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 0~1000 pcs

Delivery Time : 7~ 15 working days

Packaging Details : Carton packaging

Principle : Fluorescence analysis method

Measuring range : 0~20mg/L or 0-200% saturation

Response time : 3 seconds

Accuracy : 1%

Protection level : Ip68

Output : RS-485, MODBUS protocol

Power supply : DC 6~12V, current <50mA

cable length : Default 5 m

Housing material : SS316/Titanium alloy

Contact Now

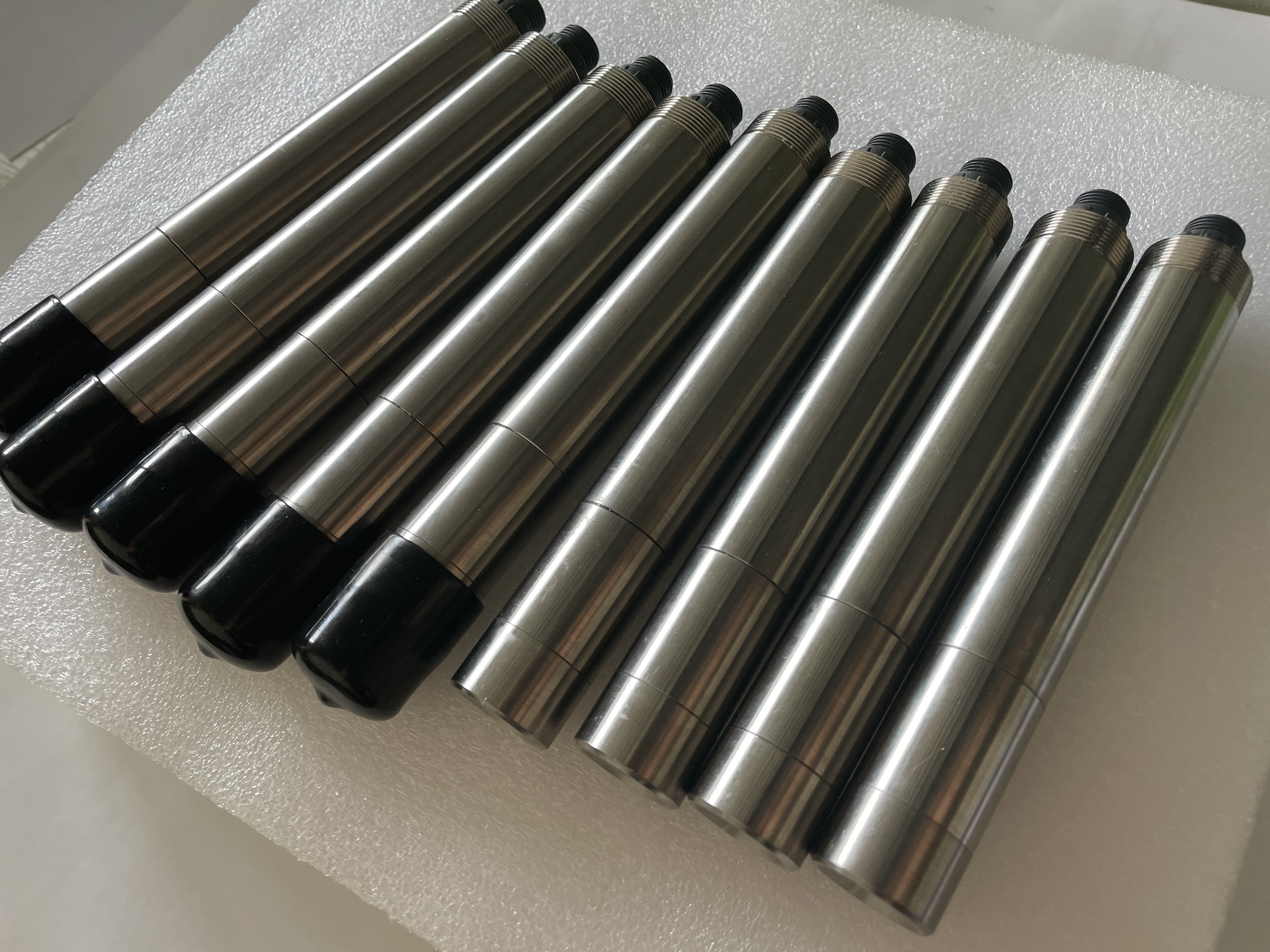

Online Fluorescence Dissolved Oxygen Tester probe modbus protocol fluorescent material

Description

Blue light from a light-emitting diode (LED) illuminates the fluorescent material on the inner surface of the fluorescent cap, and the fluorescent material on the inner surface is excited to emit red light by detecting the phase difference between red and blue light and the internal calibration value.

Features

* 0-20mg/L or 0-200% saturation
* 0~50 °C; IP68 protection level
* No need to consume oxygen, no flow rate
* Built-in temperature sensor, automatic temperature compensation
* Free from chemical interferences such as sulfides
* Small annual drift, fast response, and more accurate measurement
* Free of maintenance, longer application cycle and lower cost of use
*Support RS-485, MODBUS protocol

Item

Parameters

Model

DS380

Principle

Fluorescence analysis method

Measuring range

0~20mg/L or 0-200% saturation

Response time

3 sec

Accuracy

1%

Protection level

IP68

Installation

Submersible

Temperature sensor

NTC

Temperature range

0~50°C

Temperature accuracy

±0.2°C

Output

Support RS-485, MODBUS protocol

Power supply

DC 6~12V, current <50mA

Size

Φ26*155 mm

Probe cable length

Default 5 m, customized 10m, 15 m and 30 m cable

Fluorescent cap life

1 year

Maximum working pressure

3bar

Housing material

SS316/Titanium alloy

Our Service

* Standardized workshop and process

* Strict professional quality inspection

* Return is supported if the product is unqualified.

* Fast delivery

* Warranty for 1 years
