Agricultural Water Ec Sensor Input Type Fertility Detection With Four Electrode

Name: Agricultural Water Ec Sensor Input Type Fertility Detection With Four Electrode
Brand: Desun Uniwill
Price: 1 USD

Agricultural Water Ec Sensor Input Type Fertility Detection With Four Electrode Manufactures

Brand Name : Desun Uniwill

Model Number : DSC480

Place of Origin : China

MOQ : 1

Price : Determined by the number of specific orders

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 500

Packaging Details : Carton packaging

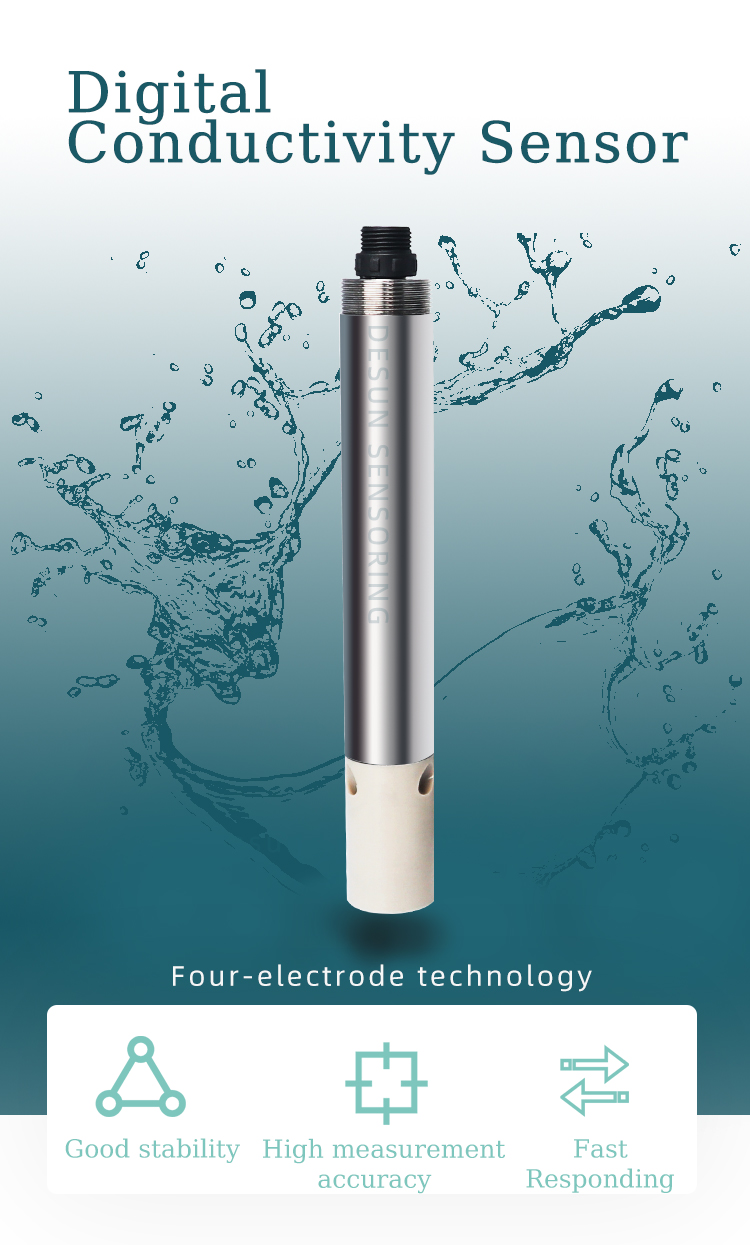

Product Name : Digital Conductivity Sensor

Principle : Four-electrode

Accuracy : ±1%

Resolution : 1uS/cm

Power Supply : DC 6~12V, current <50mA

Output Signal : Support RS-485, MODBUS protocol

Material : SS316 PEEK

Customized support : OEM, ODM, OBM

Contact Now

Water conductivity sensor Water fertility detection EC meter agricultural species plant network equipment

Product Description

Digital conductivity sensor adopts a new generation of four-electrode/six-electrode technology, with wide measurement range, automatic switching measurement range, built-in temperature sensor and real-time temperature compensation. It has excellent anti-pollution ability and will not cause polarization even in the harsh environment for long-term online monitoring. RS485 output, can be networked without a controller.We launched a wireless water quality monitoring solution based on the current rapid development of the Internet of Things technology, combining smart terminals and traditional display units through wireless transmission to achieve real-time dynamic water quality monitoring functions such as data cloud display, remote cloud control, and upper and lower limit alarms.

Maintenance method

Check whether the electrode or light window of the sensor is dirty, whether the cleaning brush is normal, and whether the electrode is normal.
Check whether the cleaning brush (if any) of the sensor is damaged and whether it can work normally.
Continuous use for more than 18 months, (as the case may be) return to the factory to replace the dynamic sealing device

Technical parameters

Product name	Four-electrode conductivity sensor		Six-electrode conductivity sensor
Model	DSC480	DST481	DST482
Range	1uS/cm~200 mS/cm	1uS/cm~100 mS/cm	1uS/cm~100 mS/cm
Conductance accuracy	±1%
Resolution	1uS/cm
Response time	<2 sec
Protection level	IP68
Max operating pressure	6 bar
Temperature range	0~ 50°C
Sensor interface	Support RS-485, MODBUS protocol
Installation	Input type
Power supply	DC 6~12V, current <50mA
Temperature Sensor	NTC
Electrode material	Nickel
Housing material	PEEK
Probe cable length	5 meters (default), can be customized
Size	Φ 22 *165mm
Calibration	One or two point calibration

Detailed Images

Agricultural Water Ec Sensor Input Type Fertility Detection With Four Electrode

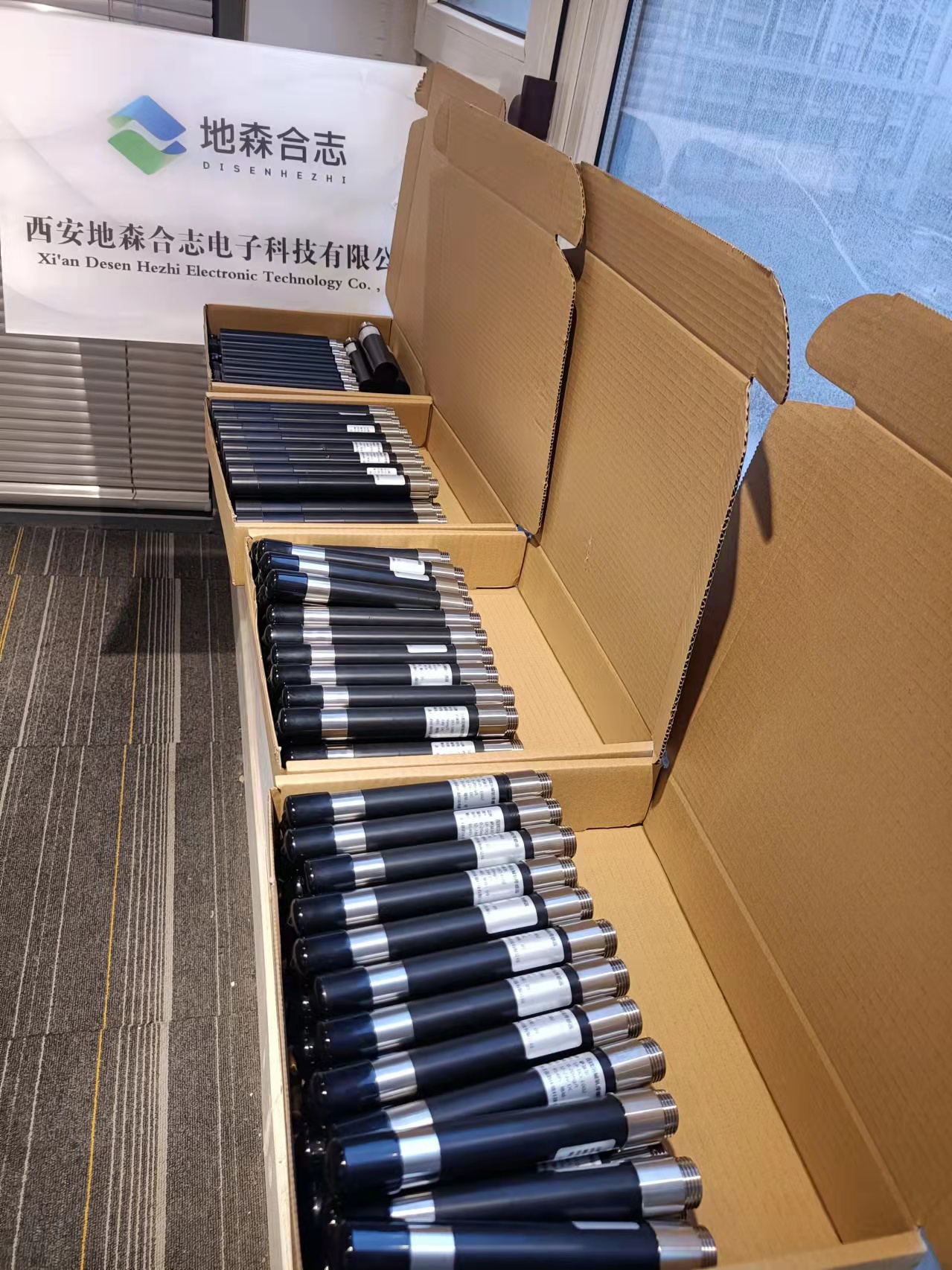

Packing & Delivery

Our Service

* Standardized workshop and process
* Strict professional quality inspection
* Return is supported if the product is unqualified
* Fast delivery
* Warranty for 1 year

FAQ

Q: Is your company a manufacturer??
A: Yes,we are a professional manufacturer of online water quality monitoring products: oil in water sensor/ DO sensor/ NH4-N sensor / ORP / COD sensor / Blue-green algae sensor /Conductivity sensor /TDS / TSS /MLSS,ect.
Q: What parameters do you need for product selection?
A: Application, Range, Power supply and Output signal.
Q: How about the quality of the managements?
A: We have a complete quality control system, our products will be fully pre-inspection before shipping to you. We have the certification of ISO, CE, we could send the certification test of our company to you.
Q: Can you offer OEM services?
A: Yes,we support OEM and ODM products according to your requirements.
Q: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
Q: How about warranty?
A: 12 months warranty
