RS485 Water Chlorophyll Sensor Solution For Water Self-Cleaning Chlorophyll Sensor Analyzer

How does an ammonia sensor work?

Ammonia detector works on electrochemical principle. Electrochemical sensors are electrochemical measuring transducers for measuring the partial pressure of gases under atmospheric conditions. The ambient air being monitored diffuses through a membrane into the liquid electrolyte in the sensor.

1. Overview

Online chlorophyll digital sensor, adopts leading optical fluorescence technology, fiber- optic structure, has extremely low power consumption, very stable test performance, compact and lightweight. Measure directly and control the latest water quality status in real time, which is simpler than traditional analysis methods. It can be used for research, investigation and monitoring of rivers, lakes, ponds, marine surveys, aquaculture, drinking water sources, algae and phytoplankton.

2. Features

-Digital sensor, RS485 output, support Modbus
-Built-in temperature sensor
-0 ~ 50 ℃; IP68 protection
-Optical fiber structure, which can reduce the influence of stray light on the measurement
-Measure directly, easier than traditional analysis methods
-With automatic cleaning brush to prevent contamination and eliminate airbubbles

3. Technical parameter

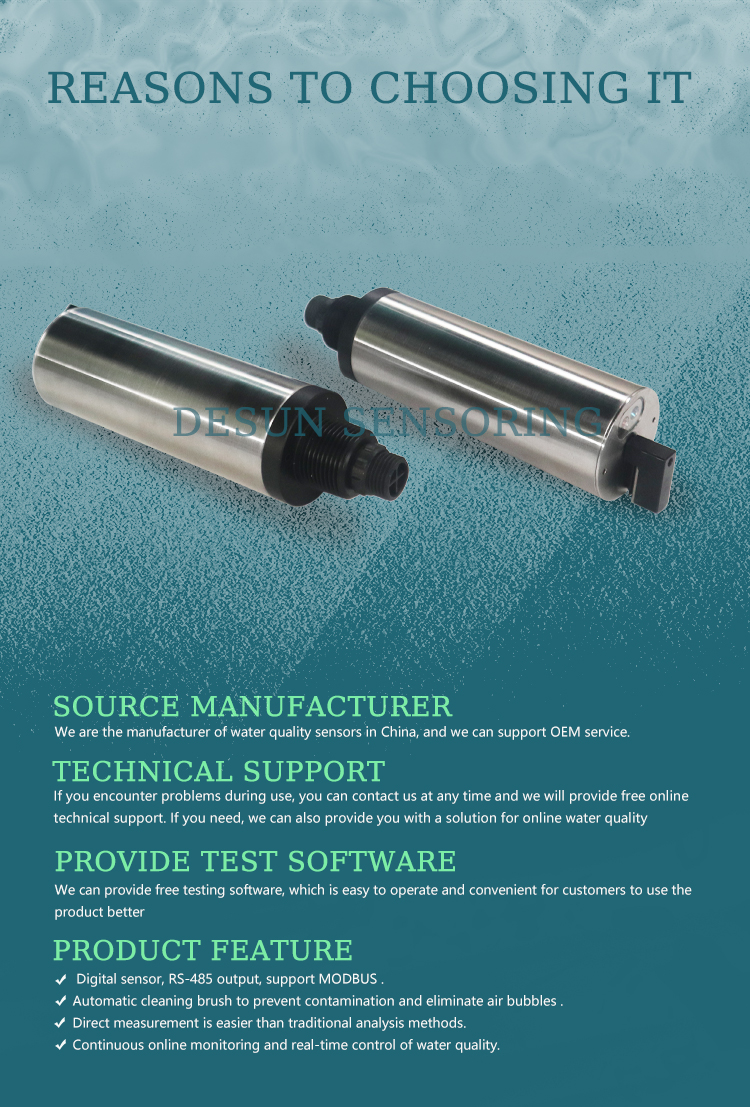

4. Photos

5. Cable Information for Sensors

4 wire AWG-24 or AWG-26 shielding wire. OD=5mm
 Red line----power supply (VCC)
 White line---- 485 data -B (485-B)
 Yellow line---- 485 data -A (485-A)
 Black line----ground (GND)
 Bare line---- shielding layer

Desun Uniwill Company

Xi'an Desun Uniwill Electronic Technology Co., Ltd (Hereinafter referred to as Disen Sensing Company) is located in Xi'an High-tech Development Zone. It is a high-tech company integrating production, R&D, sales and engineering services. Relying on Xi'an's rich high-tech resources, we have carried out technical cooperation with many universities and scientific research institutions, constantly breaking through technical barriers, improving product performance, and using leading technology to provide high-quality products for the water quality monitoring industry.

RS485 Chlorophyll Sensor

Water Self Cleaning Chlorophyll Sensor

SS316 Water Chlorophyll analyzer

SS316 RS485 Chlorophyll Sensor Analyzer For Water Self Cleaning Images
